The Lodge Collection wood-burning inserts have elegantly and efficiently raised the standard for home heating with their Thermal Fin Technology (TFT™). This cast-iron heat exchanger innovation delivers the ideal amount of warmth. The durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. This insert comes standard with a 3.0 cu.ft. combustion chamber, ceramic glass, interior brick and baffle, 150 CFM blower, air wash system and a 6" flue outlet. A wide set of options means that Lodge Collection inserts will easily complement any indoor setting. Call Obadiah's today for yours!
Montlake 300
|
Specifications
|
Heat Output
|
100,000 BTU/hr
|
Max Log Length
|
21”
|
Heating Area
|
3,000 ft2
|
EPA
|
EPA Certified
|
Emissions
|
1.8 g/hr
|
Efficiency |
80% |
Minimum Fireplace Dimensions
|
29 ½” W X 23 ½” H
X 16 ½” D
|
Burn Time
|
12 hrs
|
Glass Viewing Area
|
16 ½” W X 11 5/16” H
|
Flue Size
|
6”
|
Weight | 428 lbs
|
Firebox Volume
|
2.91 ft3
|
Firebox Dimensions
|
18.2” W X 21.23” D
X 13” H
|
Warranty
|
Limited Lifetime Warranty
|

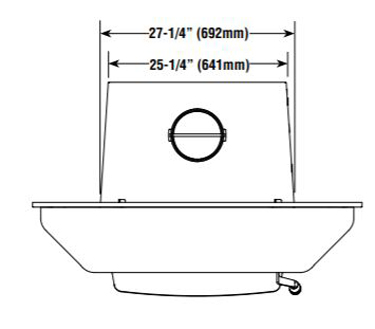

Schematic

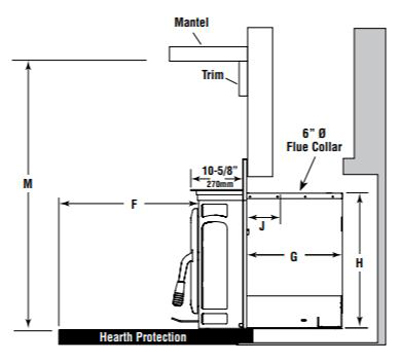

Clearances to Combustibles
Minimum Fireplace Clearances
Hearth Requirements
|
|
|
|
|
|
|
