The exclusive Echelon II See-Through series gas fireplace creates a contemporary look with double-sided viewing, active flames, and interior options that give it a unique feel. The sleek, linear design ensures that the fireplace is a captivating centerpiece in any room. Power venting technology allows you to install this gas fireplace virtually anywhere in your home. The Echelon II See-Through is available in 36" and 48" models.

Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone and glass firebed options. Comes standard with an IntelliFire® touchscreen remote but you can also add the IntelliFire app or wireless wall switch for other integrative solutions. Heat-sensitive materials can be placed just 12" above the fireplace opening without a mantel with Optional Passive Heat.

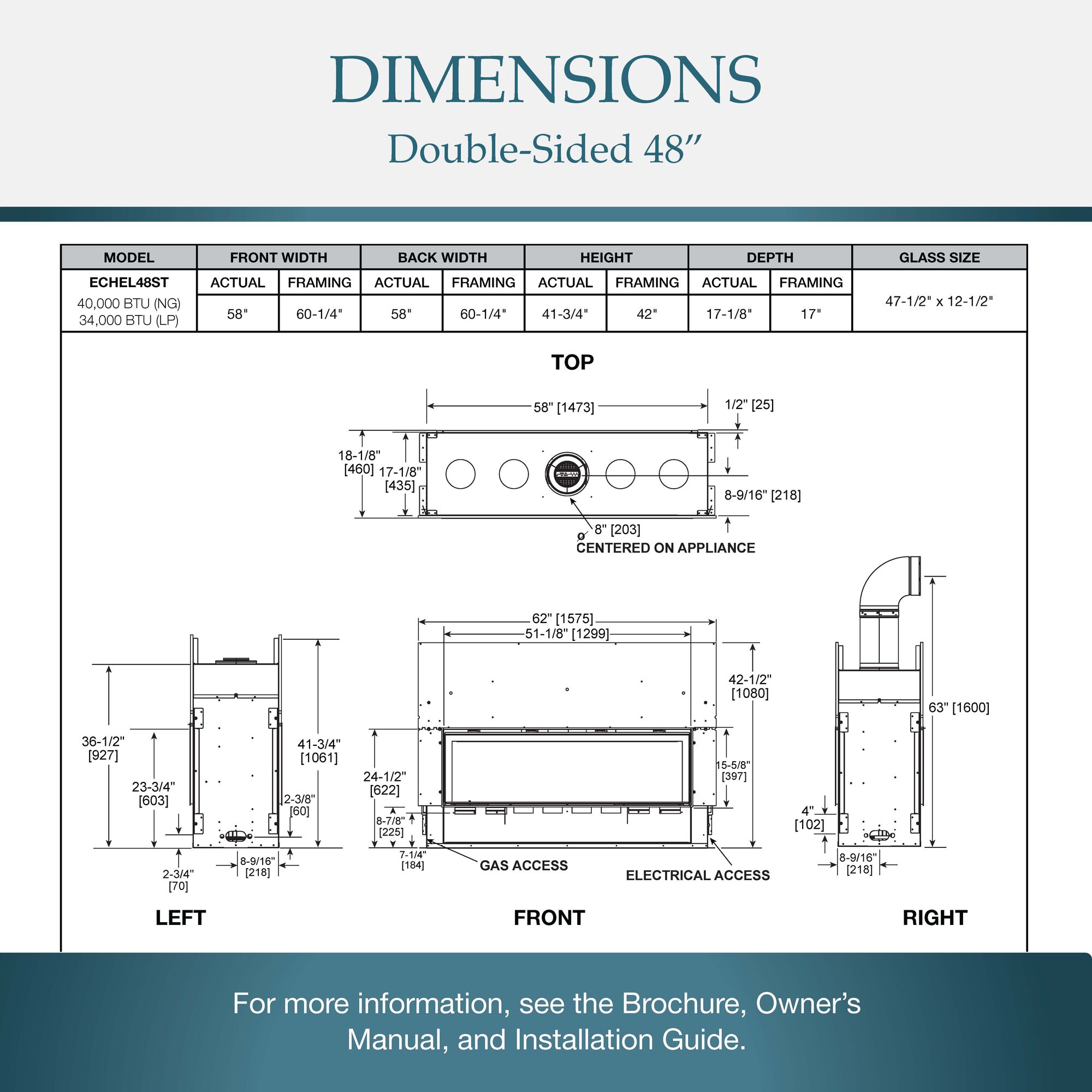

Echelon II 48 See-Through Specifications

Size	48"
Appliance Width	58"
Appliance Height	41-3/4"
Appliance Depth	17-1/8"
Appliance Rear Width	58"
Framing Height	42"
Framing Depth	17"
Framing Front Width	60-1/4"
Framing Back Width	60-1/4"
Fuel Type	Natural Gas or Liquid Propane by Conversion
BTU/hr Input	40,000 (NG); 34,000 (LP)
Heating Capacity	Up to 1,300 sq ft
Viewing Area	47-1/2 x 12-1/2"

Efficiency

AFUE	48.7% (NG) / 62% (LP)	Canada EnerGuide	49.8% (NG) / 61.3% (LP)

Venting Notes
Requires 8" DVP Pipe. Must have a 18" minimum vertical vent before attaching a 90 degree elbow to unit. Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.

Resources:
Brochure
Owner's Manual
Installation Manual
