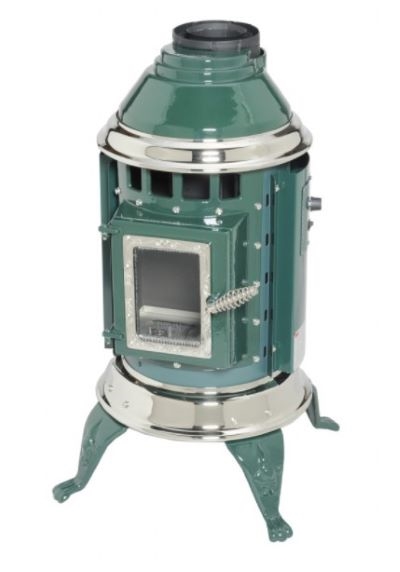

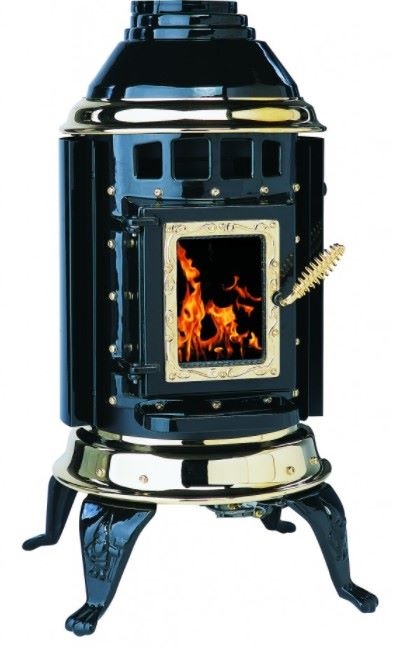

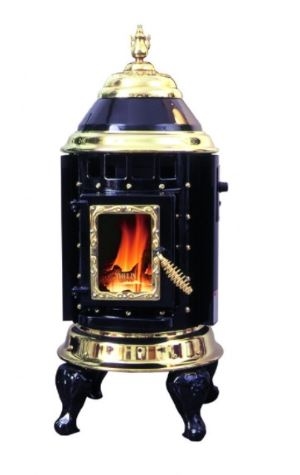

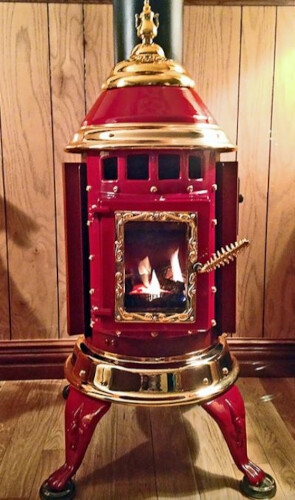

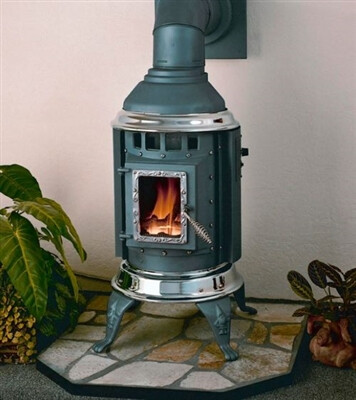

The Thelin Gnome Direct Vent Gas Stove is the little brother to the Parlour Direct Vent Gas Stove. The Gnome is designed for small space heating and would be the perfect addition to your cabin, cottage, studio or tiny home. This quaint gas stove has a traditional pot-belly style with advanced DC Drive Technology, Battery Back Up Heat, Ultra Low EPA Emissions and low operating costs. Customize this stove with various color options and nickel or gold trim. The Ceramic Ember Burner with Ceramic Logs provides a realistic wood fire effect that will make any room feel warm and welcoming. The Gnome will be an amazing addition to your home!
DIMENSIONS
|
Height:
|
34"
|
|
Weight:
|
125 lbs
|
|
Diameter:
|
17.5"
|
|
Venting:
|
6 5/8" Simpson Duravent direct vent required
|
|
Footprint:
|
18.5" sqaured
|
PERFORMANCE
|
Natural Gas
|
Propane
|
|
Burn Rate (high):
|
22,000 BTU
|
21,500 BTU
|
|
Burn Rate (low):
|
13,200 BTU
|
12,900 BTU
|
|
AFUE Efficiency:
|
72.5%
|
75.9%
|
CLEARANCES
|
Back Wall:
|
4"
|
|
Side Wall:
|
8"
|
| Corner Wall:
|
8"
|
| Alcove Approved |
|
| 45" Wide |
|
| 27" Deep |
|
Resources:
Owners Manual
Thelin Resources WebpageModel Numbers:
Gnome Direct Vent Gas Stove w/ Painted Color - GDV-P-(Color)(Options)(NG/LP) Gnome Direct Vent Gas Stove w/ Porcelain Enamel - GDV-PC-(Color)(Options)(NG/LP) Options Codes:(P) = Plain (NA) = Nickel Accent (NT) = Nickel Trim (GA) = Gold Accent (GT) = Gold Trim
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Variable Flame Height
- Ceramic Ember Main Burner
- Ceramic Logs - Realistic Wood Fire Effect
- Variable Speed Blower
- Sturdy Cast Iron Construction
Options
- Your choice of eight matte and metallic painted colors or six porcelain enamel colors
- 14K gold plated trim package
- Nickel plated trim package
- Wall-mounted thermostat
- Remote thermostat
Painted Metallic Color Options
Black
|
Blue
|
Moss Green
|
Brown
|
Honey-Glo Brown
|
|
|
Painted Matte Color Options
Satin Black
|
Forrest Green
|
Goldenfire Brown
|
|
|
|
|
Porcelain Enamel Color Options ****Options shown in the Parlour model, not the Gnome****
Trim + Accent Options ****Options shown in the Parlour model, not the Gnome****
|
|
|
|
|
|
|
